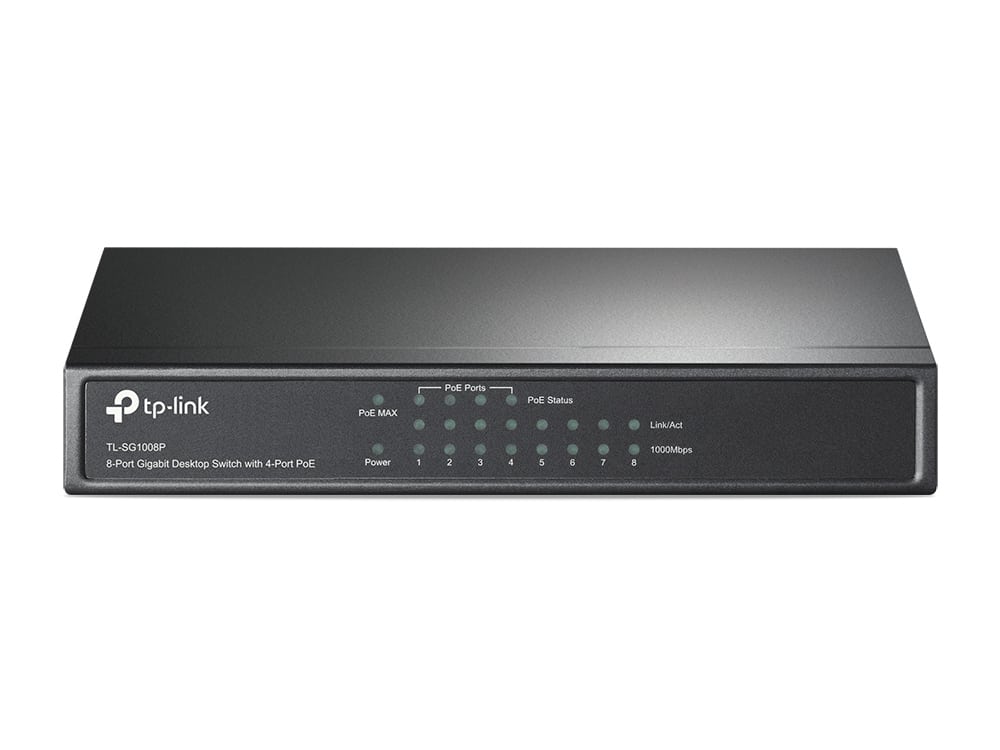

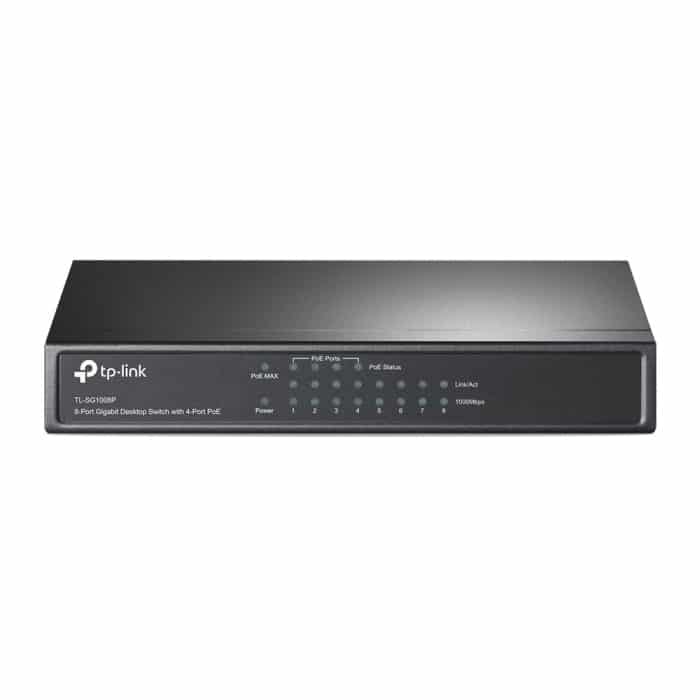

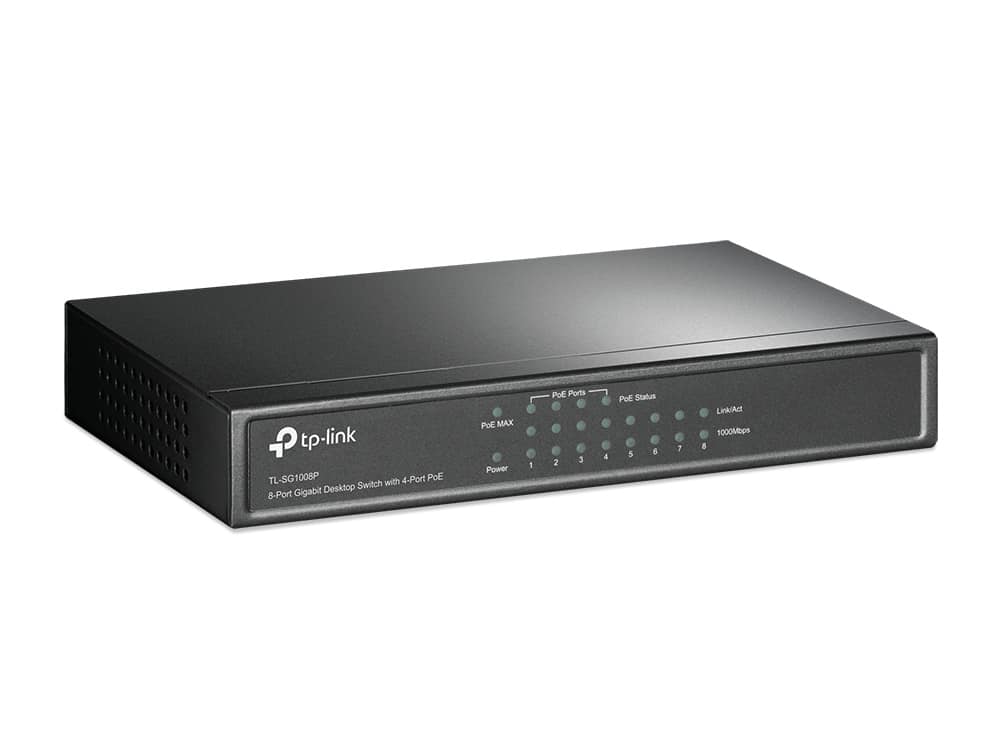

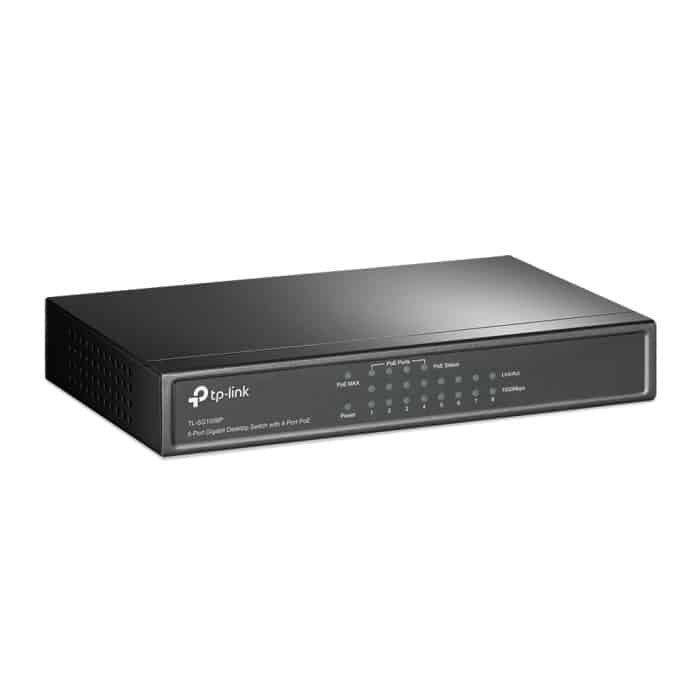

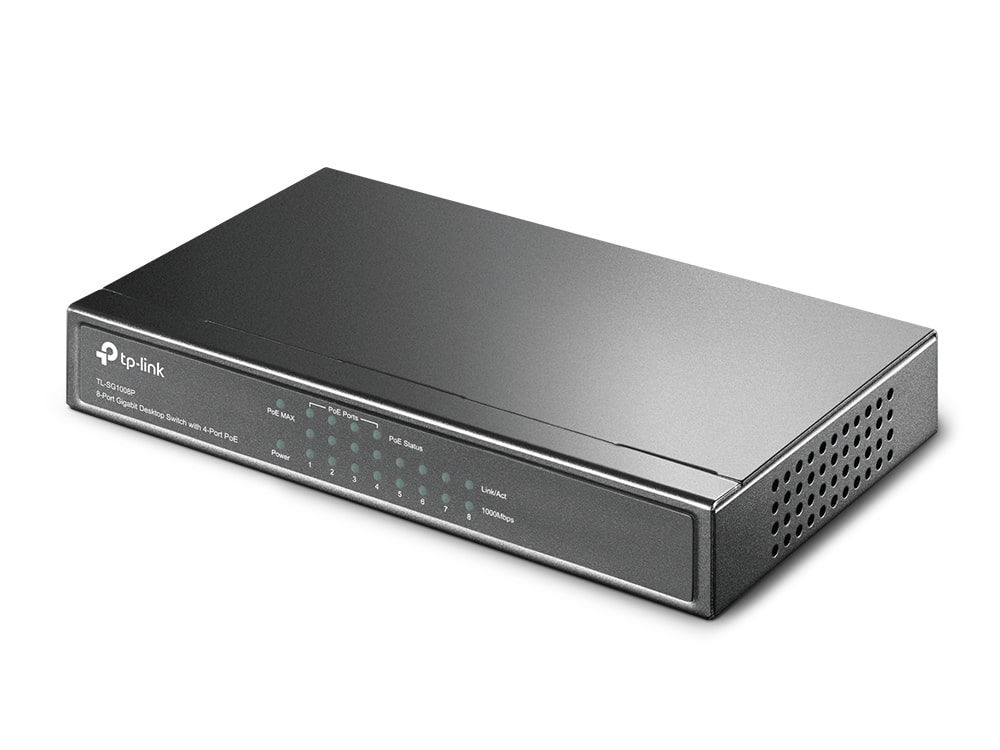

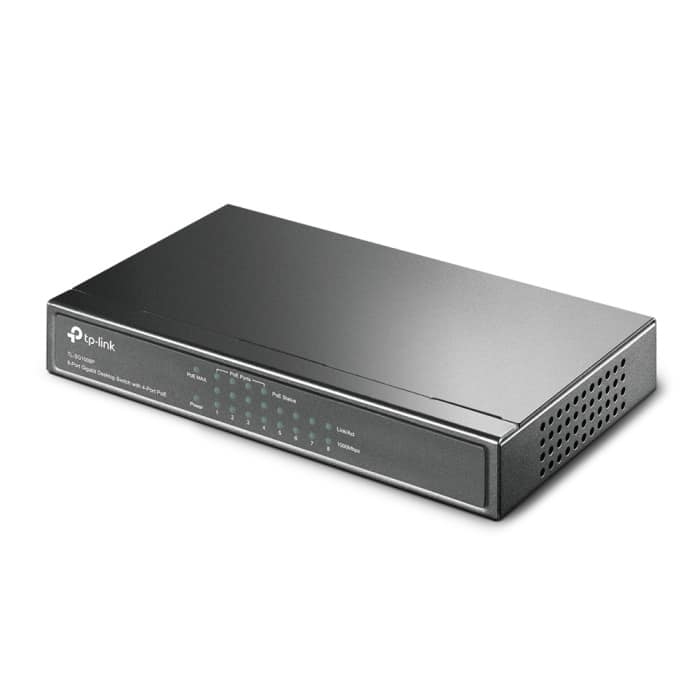

SWITCH TP-LINK 8 ports Gigabit – 4 Ports PoE

CARACTERISTIQUES MATERIELLES

Interface 8 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Interface réseau 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Nombre de ventilateurs Fanless

Système de verrou physique No

Alimentation externe External Power Adapter(Output: 48VDC / 1.25A)

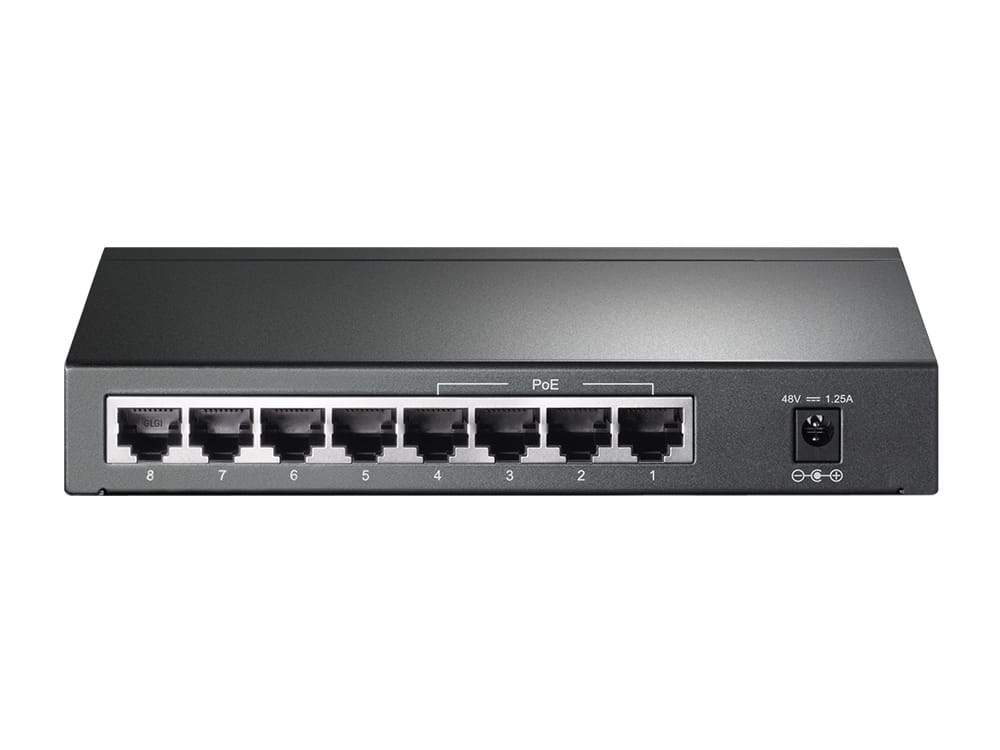

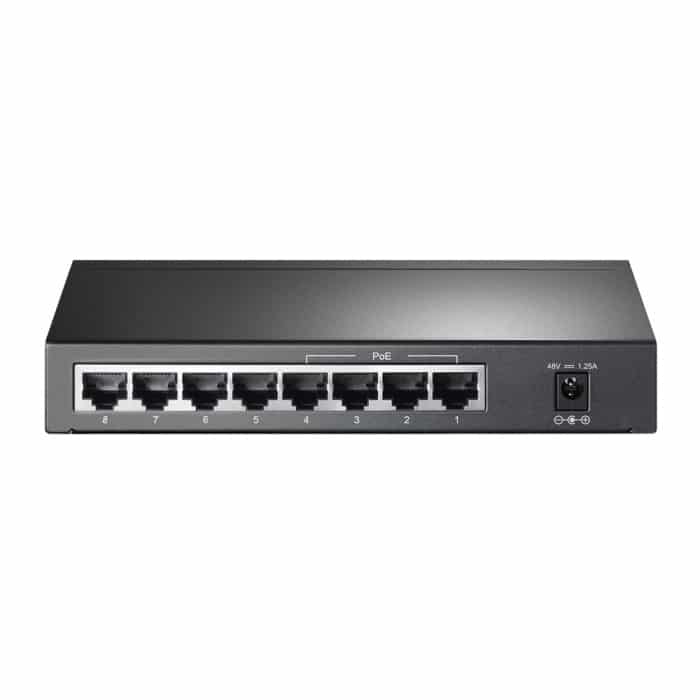

Ports PoE (RJ45) Standard: 802.3 af compliant

PoE Ports: Port1- Port4

Power Supply: 55W

Bande passante en retour 16Gbps

Tableau d’adresses MAC 4K

Dimensions (LxPxH) 171*98*27 mm

Consommation maximale 5.49W(220/50Hz. no PD connected)

65.24W(220/50Hz. with 55W PD connected)

Max dissipation thermique 18.73BTU/h(no PD connected)

222.60BTU/h(with 55W PD connected)

CARACTERISTIQUES LOGICIELLES

Méthode de transmission Store-And-Forward

Fonctions avancées Compatible With IEEE 802.3af Compliant PDs

Priority Function

Mac Address Auto-Learning And Auto-Aging

EEE802.3x Flow Control

802.1p/DSCP QoS

AUTRES

Certification CE, FCC, RoHS

Contenu de l’emballage TL-SG1008P, Power Adapter, Installation Guide

Environnement Operating Temperature: 0°C~40°C

Storage Temperature: -40°C~70°C

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5%~90% non-condensing
