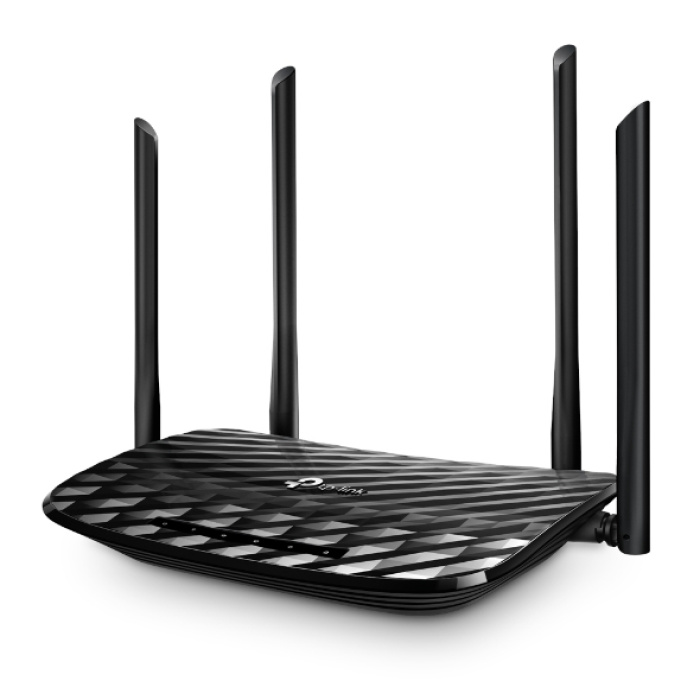

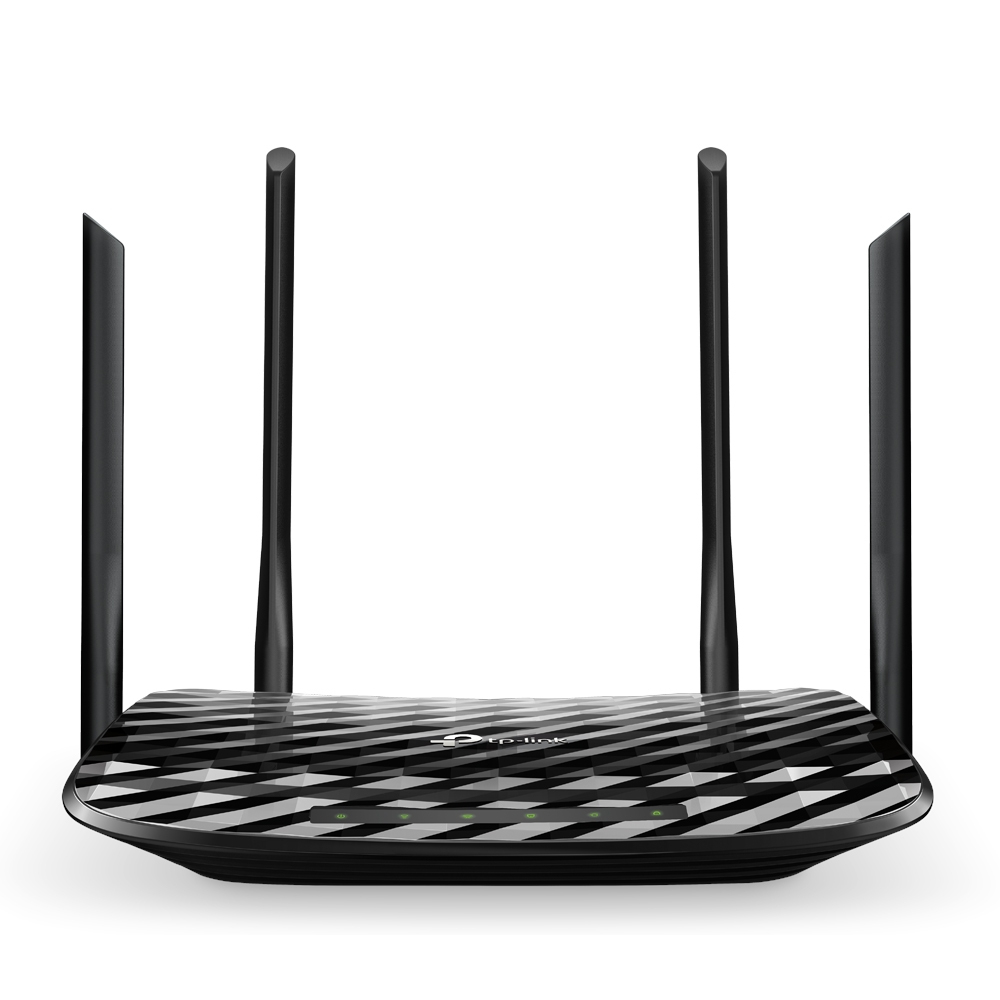

ROUTEUR TP-LINK AC1200 WIRELESS MU-MIMO GIGABIT

Standards Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

Débits WiFi AC1200

5 GHz: 867 Mbps (802.11ac)

2.4 GHz: 300 Mbps (802.11n)

Couverture WiFi 3 Bedroom Houses

4× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

Capacité WiFi Medium

Dual-Band

Allocate devices to different bands for optimal performance

MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

Modes de Fonctionnement Router Mode

Access Point Mode

MATERIEL

Processeur Dual-Core CPU

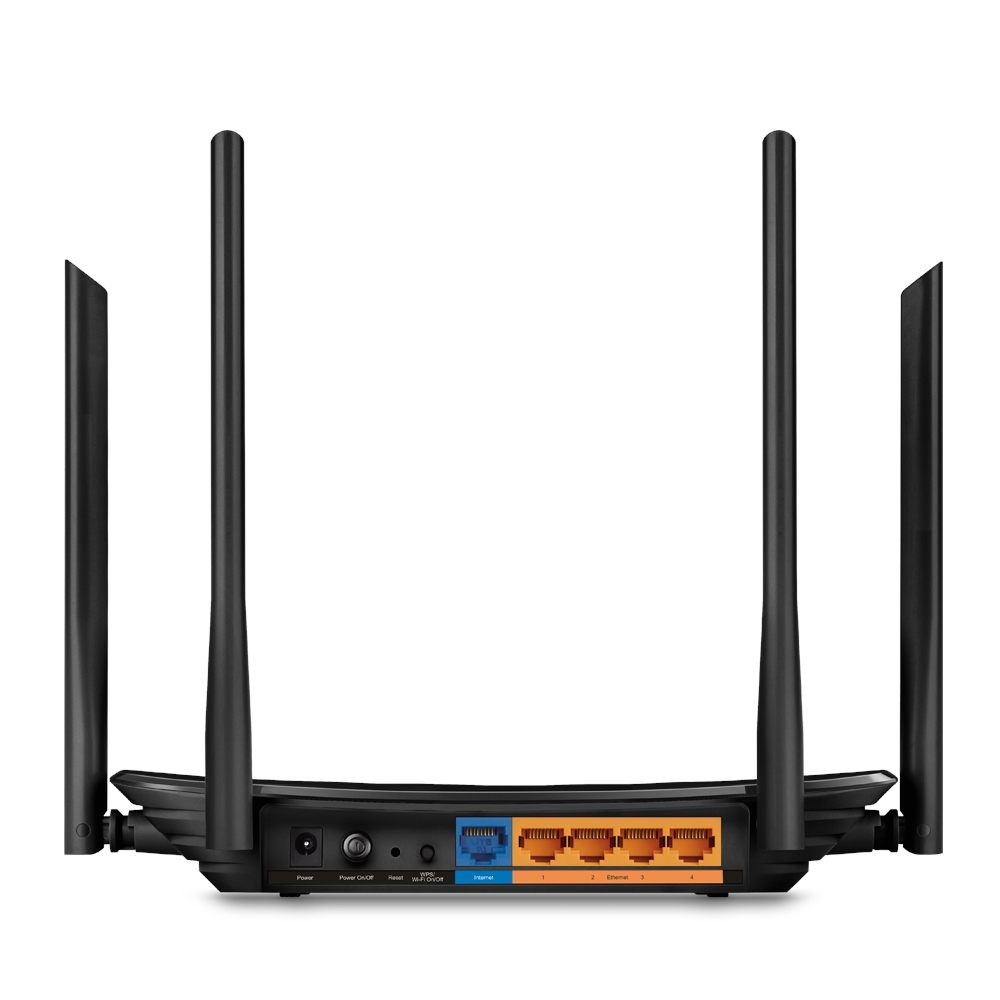

Ports Ethernet 1× Gigabit WAN Port

4× Gigabit LAN Ports

Boutons WPS/Wi-Fi Button

Power On/Off Button

Reset Button

Puissance 12 V ⎓ 1 A

SÉCURITÉ

WiFi Encryption WPA

WPA2

WPA3

WPA/WPA2-Enterprise (802.1x)

Sécurité Réseau SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Réseau Invité 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

Serveur VPN OpenVPN

PPTP

LOGICIEL

Protocoles IPv4

IPv6

OneMesh™ OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Learn More>

All OneMesh Products>

Contrôle Parental URL Filtering

Time Controls

Types WAN Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Qualité de Service QoS by Device

Service Cloud OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Virtual Servers

Port Forwarding

Port Triggering

DMZ

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

NO-IP

DynDNS

Management Tether App

Webpage

Check Web Emulator>

PHYSICAL

Dimensions (W×D×H) 8.5 × 4.6 × 1.2 in

(215 × 117 × 32 mm)

Package Contents Wi-Fi Router Archer C6

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

AUTRES

Systèmes Requis Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS

Environnement Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

Puissance Transmission WiFi CE EIRP:

<20dBm(2.4GHz)

<23dBm(5GHz)

FCC:

<30dBm(2.4GHz & 5GHz)

Sensibilité Réception WiFi 5GHz:

11a 6Mbps:-93dBm；11a 54Mbps:-78dBm；

11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;

11ac HT80 mcs9:-62dBm;

2.4GHz:

11g 54Mbps:-78dBm;

11n HT20 mcs7:-74dBm;

11n HT40 mcs7:-71dbm；
