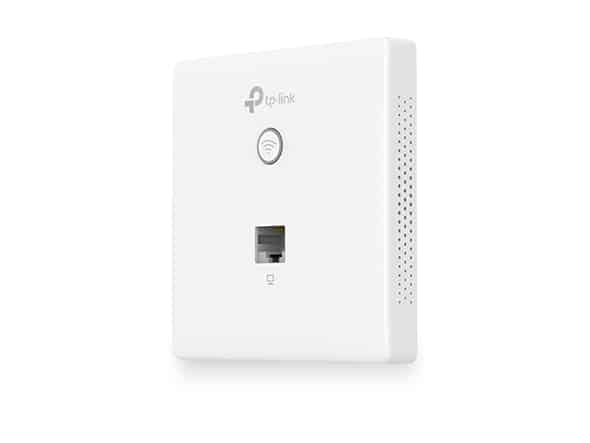

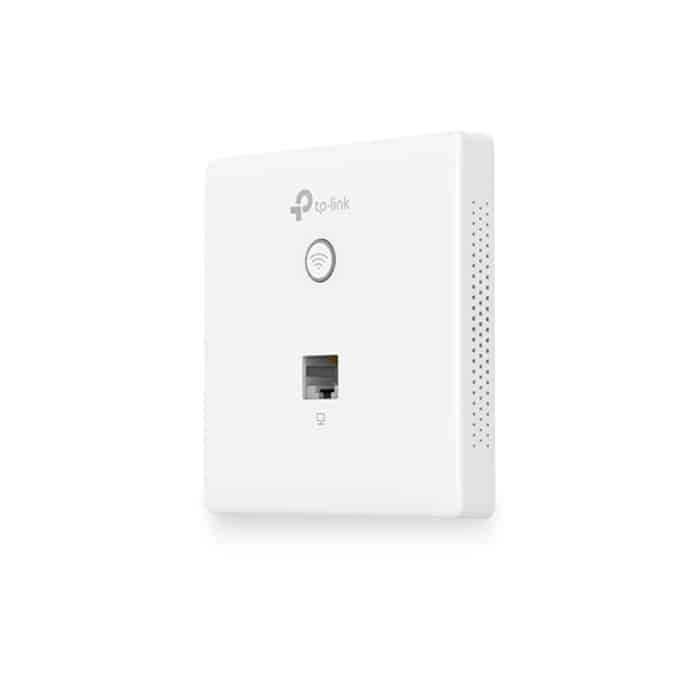

POINT D’ACCES TP-LINK SANS FIL N 300 MBPS PoE MURAL

CARACTERISTIQUES MATERIELLES

Interface 2 ports Ethernet 10/100 Mbps Ethernet (RJ-45)

Bouton LED/Wi-Fi Button、RESET

Alimentation PoE(IEEE 802.3af)

Consommation 2.8 W

Dimensions (LxPxH) 86.8*86.8*30.2 mm

Type d’antenne Internal 2*1.8dBi Omni

Montage Montage mural

Système de verrou physique –

Hardware Watch Dog Yes

CARACTÉRISTIQUES WIFI

Standards WiFi IEEE 802.11n/g/b/a

Fréquence 2.4GHz

Vitesse du signal 11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Puissance de transmission CE：

≤20dBm(2.4GHz)

Fonctions WiFi Multiple SSIDs（Up to 8 SSIDs）

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

Load Balance

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Sécurité WiFi Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Local LAN port based VLAN

Rogue AP Detection

802.1X Support

64/128/152-bit WEP / WPA / WPA2-Enterprise,

WPA-PSK / WPA2-PSK

ADMINISTRATION

Contrôleur Logiciel EAP Yes

Alertes Email Yes

DEL ON/OFF Yes

Administration de contrôle d’accès des adresses MAC Yes

SNMP v1,v2c

Journal système local/distant Local/Remote Syslog

Telnet Yes

Administration par interface WEB HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

AUTRES

Certification CE, RoHS

Contenu de l’emballage 300 Mbps Wireless N Wall-Plate Access Point EAP115-Wall

Installation Guide

Mounting Screw

Système requis Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environnement Operating Temperature: 0℃~40℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
